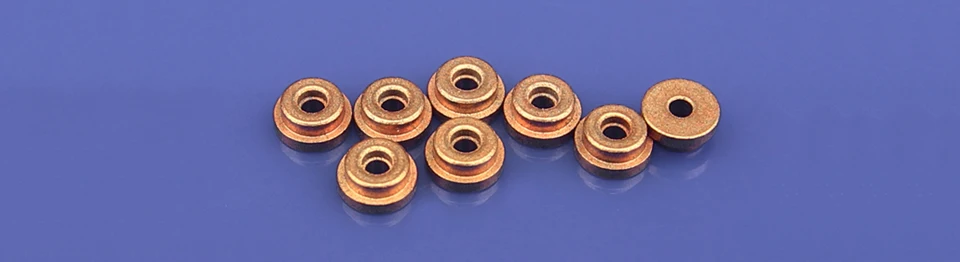

Item Name: Step Copper Sleeve (alias: Oil Bushing, Porous Bearing)
Material: Copper Base Powder Metallurgy
Packing Include: 10pcs/lot
Model No. : 1.5x4x2.1mm(with 5x1mm lip or step)
-----------------------------------------------------------
size:
• Inner diameter ∅ 1.5mm (+0.005/+0)
• Inner diameter ∅ 1.5mm (+0.005/+0)
• Small Outside diameter ∅4mm (+0/-0.02)
• Big Outside diameter ∅5mm (+0/-0.05)
• Big Outside diameter ∅5mm (+0/-0.05)
• Overall Height 2.1mm (+0.05/-0.05)
• Flange Thickness 1mm (+0.05/-0.05)
• Flange Thickness 1mm (+0.05/-0.05)
----------------------------------------------------------
