Model: Disc Spring
Material: 50CrVA

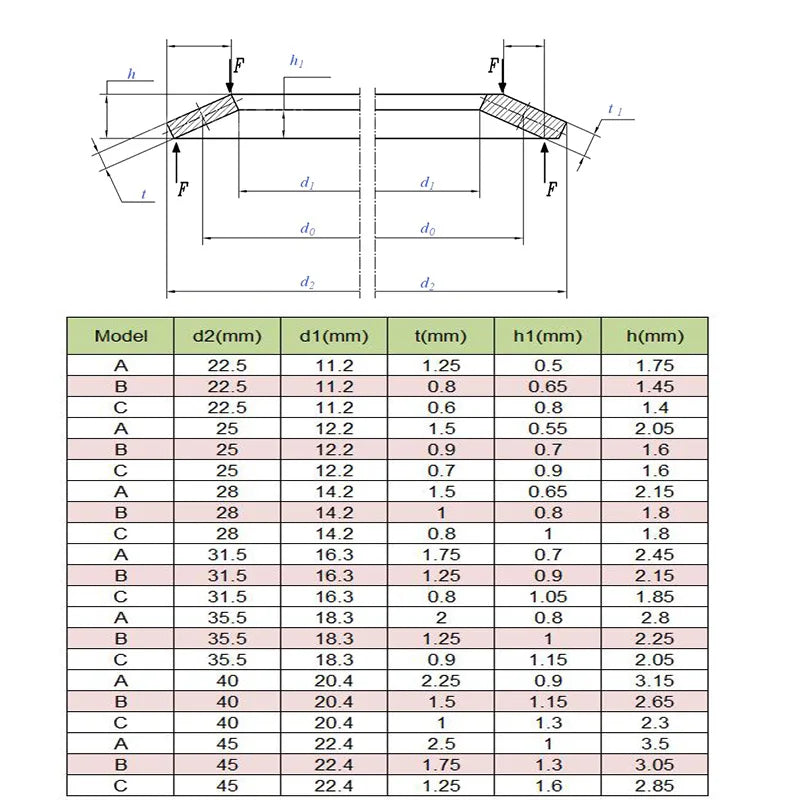

Outer Diameter:22.5~45mm
Inner Diameter:11.2~22.4mm
Disc Springs are conically formed angular Discs, which are loaded in the axial direction. Disc Springs offer a well-developed solution to many engineering problems. Through a unique combination of high force in a small space, Disc Springs can be used as single disc or arranged in stacks.
Advantages of Disc Springs
• No Deformation or Fatigue under normal loads.
• High Energy Storage Capacity.
• Long Service Life.
• Stock keeping is minimized as the individual spring sizes can be combined universally.
• Space Saving.
• Largely Self-damping, giving good shock absorption and energy dissipation.
• Efficient use of space and high spring force with small deflections.
• Adaptable to stacking in numerous configurations.
• Combination use as a modular spring element.
• Low Maintenance cost.
• Greater Security

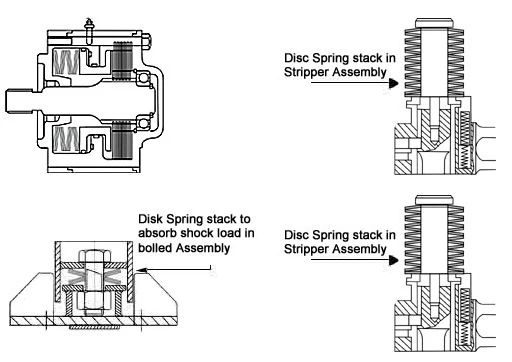

Disc Springs Applications:
• Automotive & Engines
• Brakes & Clutches
• Dampers
• Hoists
• Machine Tools
• Shock Mounts
• Vibrators
• And many more applications
