8pcs MSM LMB16UU (dr1" D1.5625" L2.25") British System Shaft Ball Bushing SW16UU Inch Size Linear Bearings 25.4*39.688*57.15mm

8pcs MSM LMB16UU (dr1" D1.5625" L2.25") British System Shaft Ball Bushing SW16UU Inch Size Linear Bearings 25.4*39.688*57.15mm

Regular price ¥936.00 CNY
Regular price ¥1,123.00 CNY Sale price ¥936.00 CNY
-16% OFF Sold out
Shipping calculated at checkout.
View full details


product-info

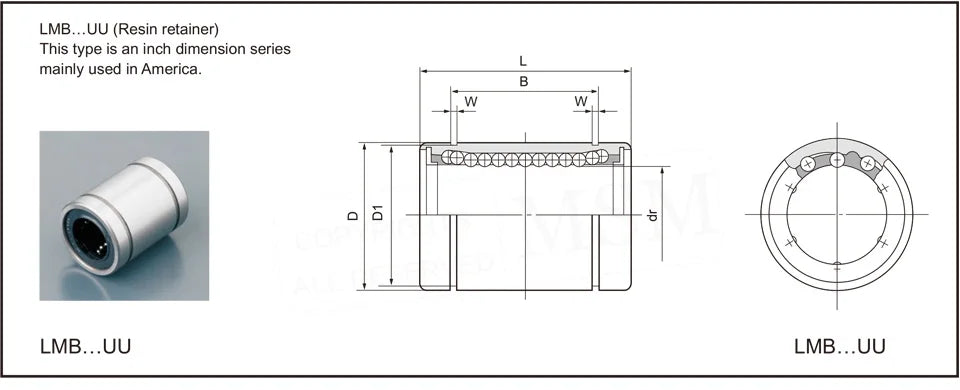

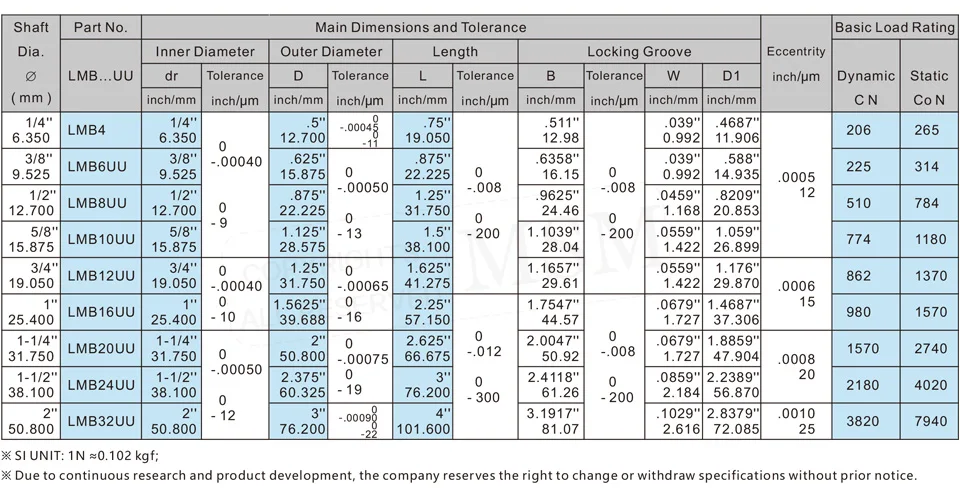

Item Name: Inch Size Linear Bearing



Model: LMB16UU (alias SW16UU)



Inner Diamter: 1'' inch/ 25.4mm



Outer Diameter: 1.5625" inch/ 39.688mm



Length: 2.25"inch/ 57.15mm



Packing Include: 8 pcs/lot



Quality Grade: Precision (Industrial grade, Little backlash, Run very smoothly)



Tips for Shaft:  g5 tolerance, Hardness HRC60-64, Roughness less than Ra0.8, Srtaightness: 50μm/300mm



Material: Steel Bush+Steel Ball+Resin Retainer



Main Applications:  CNC parts, Automation parts, Electric Tools

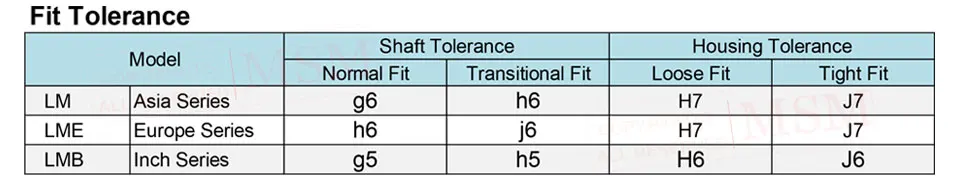

fit tolerance
    * For LMB...UU type linear bearings,  g5 tolerance linear shaft is recommended.

LMB_01LMB_02
