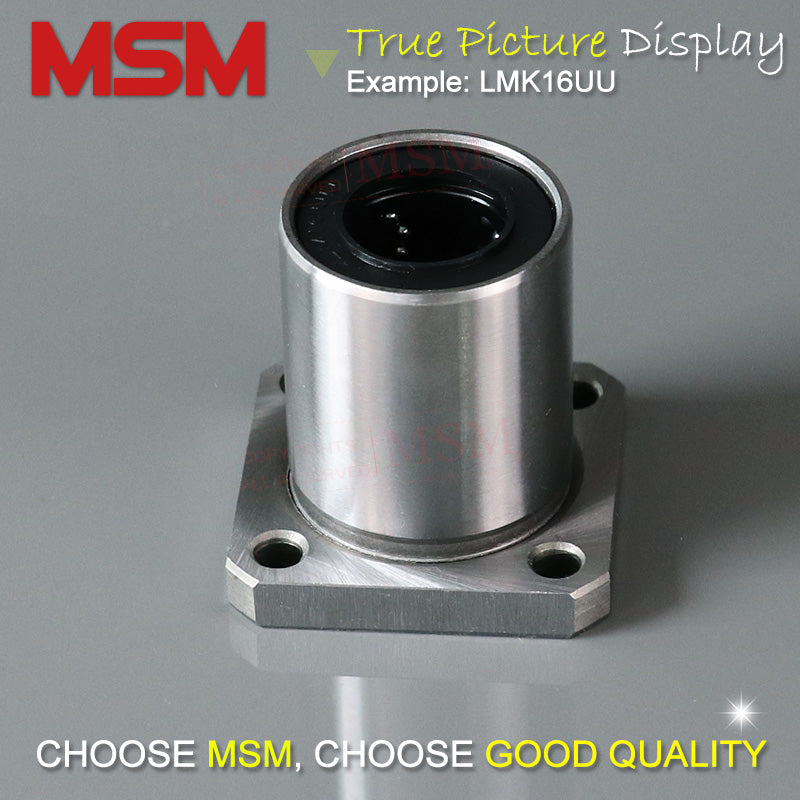

4pcs MSM Square Flange Linear Bearings LHFS/SMK/LMK6UU LMK8UU LMK8SUU LMK10UU LMK12UU LMK16UU LMK20UU LMK25UU LMK30UU LMK35UU mm

4pcs MSM Square Flange Linear Bearings LHFS/SMK/LMK6UU LMK8UU LMK8SUU LMK10UU LMK12UU LMK16UU LMK20UU LMK25UU LMK30UU LMK35UU mm

Regular price ¥86.00 CNY
Regular price ¥122.00 CNY Sale price ¥86.00 CNY
-29% OFF Sold out
Shipping calculated at checkout.
Inner Diameter
View full details

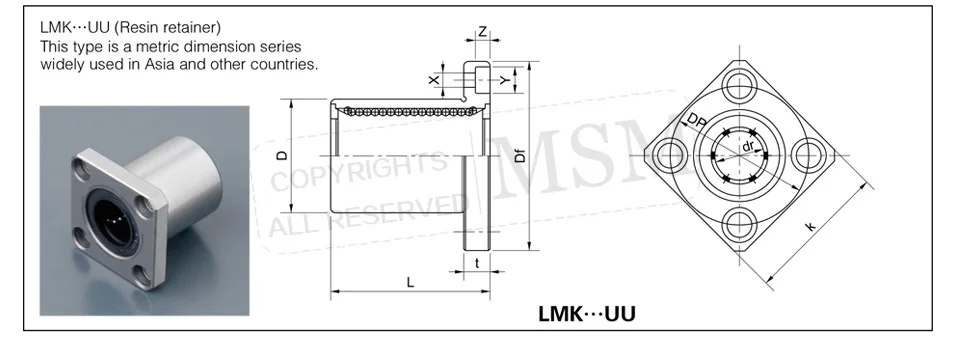

Item Name: Square Flange Linear Bearing / LMK...UU Series  (alias LHFS/SMK)

Packing Include: 4pcs

Model: Please select

Order Example: If your shaft diameter is 8mm, then you select LMK8UU, other size likewise

Note: Norminal size of all items have tolerence, actual product shall prevail.

Quality Grade: Precision

Material: Steel Bush+Steel Ball+Resin Retainer+Rubber Seal

Main Applications: CNC parts, 3D printer parts, Automation parts

Tips for Shaft: g6 tolerance, Hardness HRC60-64, Roughness less than Ra0.8, Srtaightness: 50μm/300mm

Product Features:
  • Brand: MSM
  • Square Flange, Four Mounting Holes, Standard Length.
  • Industrial Grade, Little Backlash, Run Very Smoothly.
  • Metric Dimension, Widely Used in Asia and Other Countries.
  • Online Shopping, Quick Shipping, Safe Payment.
