4pcs MSM Long Type Oval Flange Linear Bearings LHFCW/LMH6LUU LMH8LUU LMH10LUU LMH12LUU LMH16LUU LMH20LUU Sliding Motion Ball Bushings

4pcs MSM Long Type Oval Flange Linear Bearings LHFCW/LMH6LUU LMH8LUU LMH10LUU LMH12LUU LMH16LUU LMH20LUU Sliding Motion Ball Bushings

Regular price ¥127.00 CNY
Regular price ¥181.00 CNY Sale price ¥127.00 CNY
-29% OFF Sold out
Shipping calculated at checkout.
Model
Number of PCS
View full details
product-info



Item Name: Long Type Oval Flange Linear Bearing / LMH...LUU Series        (alias LHFCW)



Model No. :  Please Select  (Packing Detail : 4 pcs/lot)



Order Example :   If your shaft diameter is 16mm, then you select LMH16LUU, other size likewise

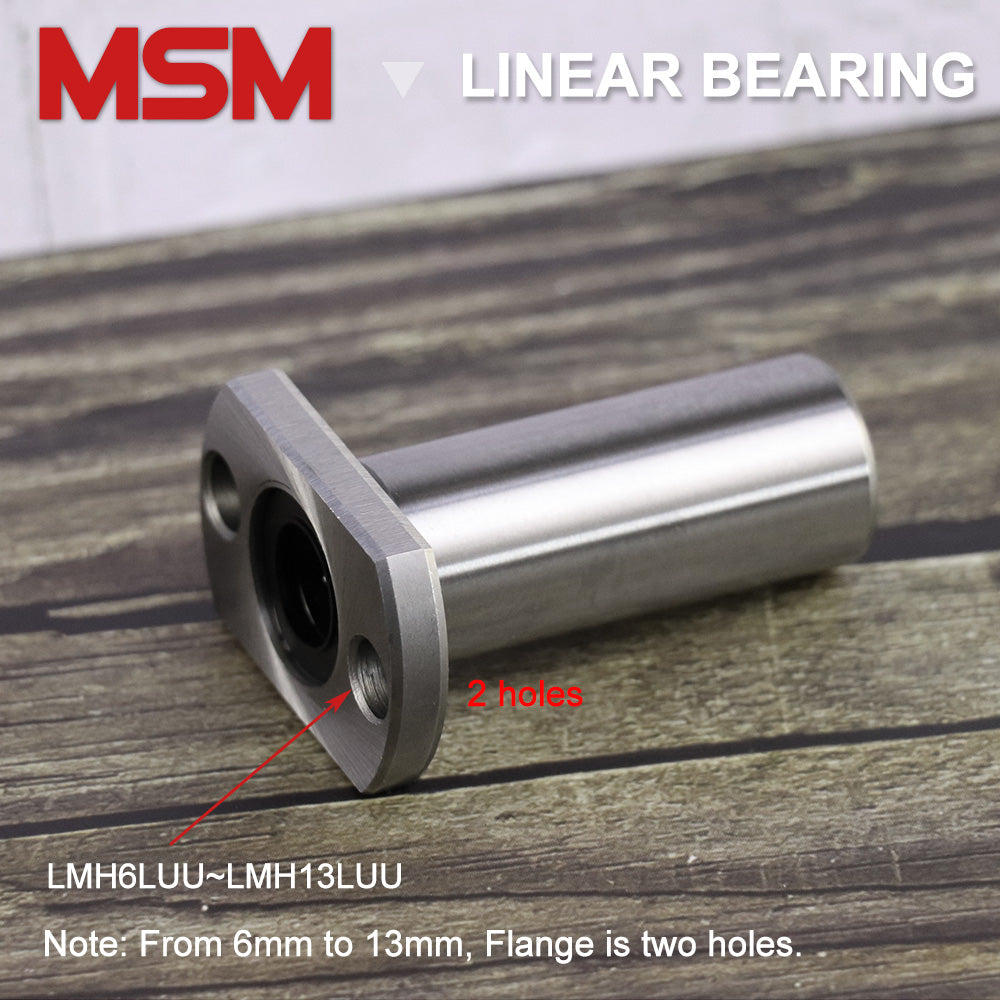

Mounting holes:  Size 13 or below has two holes; Size 16 or up has four holes



Quality Grade: Precision (Industrial grade, Little backlash, Run very smoothly)



Material: Steel Bush+Steel Ball+Resin Retainer



Main Applications:  CNC parts, 3D printer parts, Automation parts



Tips for Shaft:  g6 tolerance, Hardness HRC60-64, Roughness less than Ra0.8, Srtaightness: 50μm/300mm
