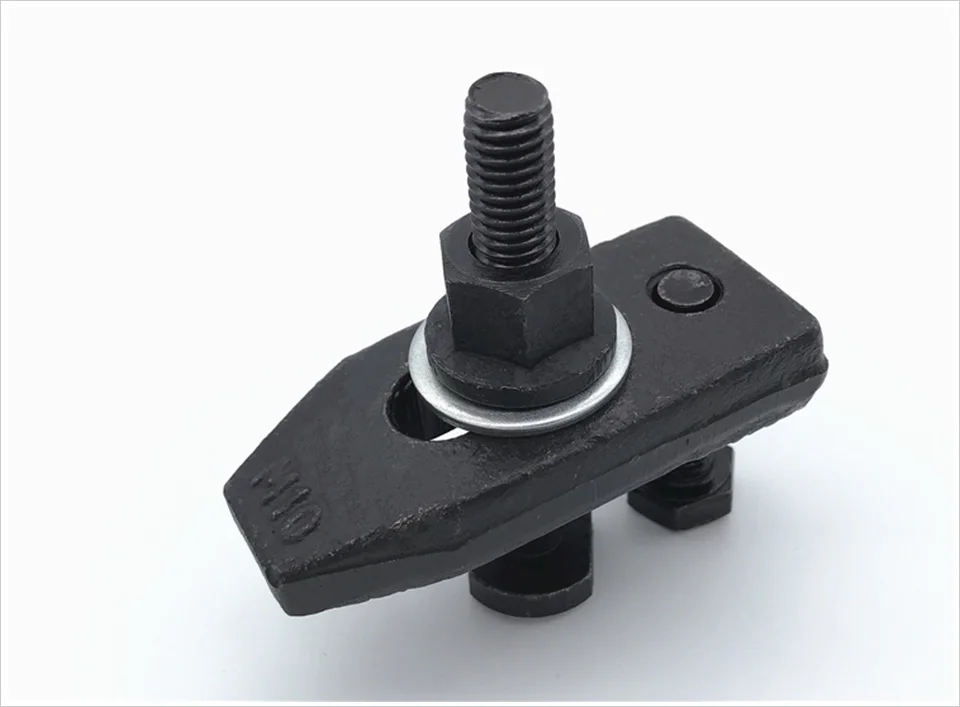

1 set MSM Platen CNC Milling Engraving Machine Parts M10 Pressure Plate Clamp Fixture Fastening Plate for T-slot Working Table

1 set MSM Platen CNC Milling Engraving Machine Parts M10 Pressure Plate Clamp Fixture Fastening Plate for T-slot Working Table

Regular price ¥99.00 CNY
Regular price ¥99.00 CNY Sale price ¥99.00 CNY
-0% OFF Sold out
Shipping calculated at checkout.
size
View full details



Item Name: engraving machine fixed platen

Material: carbon steel

Main Applications:  engraving machine

Packing Include:  1set (1set=1pcs plate+1pcs T-bolt+1pcs wahser+1pcs nut+1pcs screw)

T-bolt :  M8 T-bolt or M10 T-bolt available for selecting

M8 T-bolt Size:   bolt length/ 70mm; screw head size/ 18mm long, 14mm wide, 5mm thick

M10 T-bolt Size: bolt length/ 70mm; screw head size/ 23mm long, 17.6mm wide, 6.5mm thick

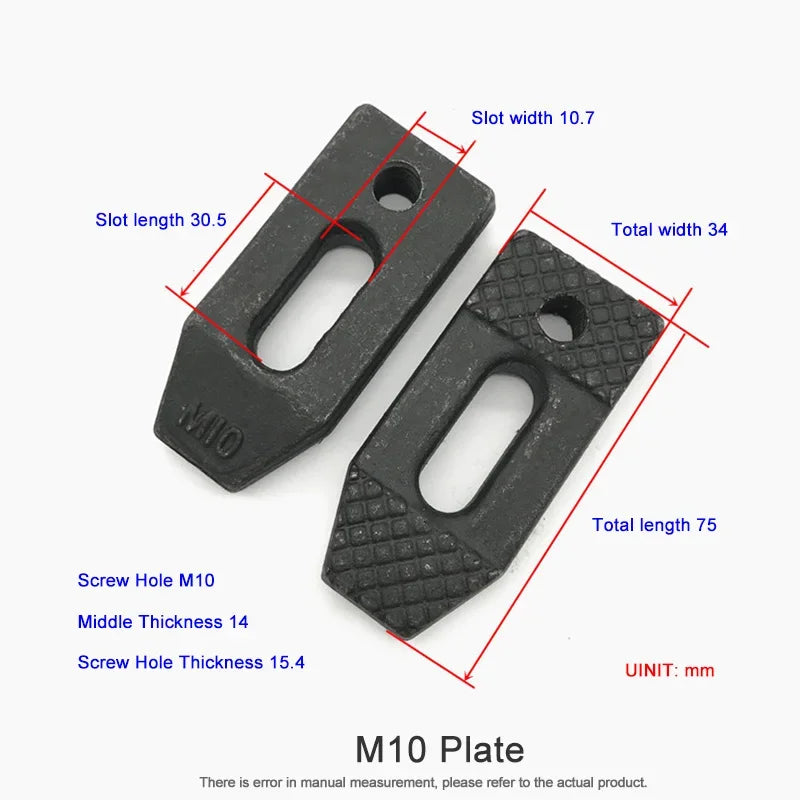

Attention!!!   The plate of M8 and M10 are same size, only the T-bolt is different.









Note: There is error in manual measurement, please refer to the actual product. Please allow+/-3mm.
